KEY FEATURES

• Dual Modulator Inputs

• Adjustable Gain

• Can be Remote Powered from a Resi-linx Modulator

• Capable of IR Remote Extension

• Works with Foxel & Austar

• 12 Months Warranty

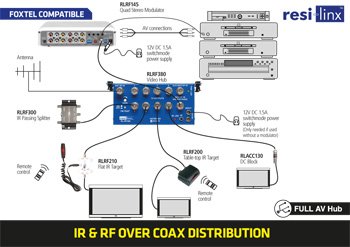

The RL-RF380's patented design is for whole-house videodistribution with IR control. The splitters have reverse path IR control, that when combined with other products inthe IR range, will allow you to control the AV inputs from other locations. The RL-RF380 must be remotely powered by anIR Modulator when using the IR Control.

• Inputs: 3
• Outputs: 8
• Output Run Distance: 60m
• IR Control: Yes
• Patented
• Must be remotely powered by an IR Modulator when using the IR Control

FEATURES

•  Active, low loss combiner and splitter with 3 inputs, 8 outputs
• Includes gain control for Free To Air input to eliminate problems due to high/low signal strength.
• When combined with gain control on modulator, allowscomplete balancing of signals
• FM trap On/Off switch to filter 88-108MHz signals from transferrring through to output ports to eliminate FM interference to TV reception
• Designed for mounting into Vcomm’s Structured Cabling Enclosure

SPECIFICATIONS:

• Output Frequency Pass: 30KHz to 850MHz
• Number of output: 8
• Number of input (Modulator / ANT): 3
• Gain / Loss
  • ANT: +2dB
  • Modulator: +3dB
• Output run distance: 60 metres
• Isolation (Modulator inputs to ANT): -80dB
• Weight (g): 405
• Size (mm): 135 (l) x 69 (w) x 22 (d)
• Power Supply
  • Input: 110 - 240V AC
  • Output: 12V DC - 1.5A Switch Mode
• Connections - Power Out 1.8mm length with 2.1mm minijack socket
