High powered (50W RMS per channel) In-Ceiling Amplifier with built-in Bluetooth Receiver and line level input. Play your audio from your personal device (iTouch, iPhone, iPad etc) wirelessly via Bluetooth. Ideal for both stand alone and multi room audio solutions.

Includes BT antenna, power supply, TIM (Target Indicator Module) and Remote Control.

• In-Ceiling Amplifier
• 50W RMS Amp per channel
• Single or multiple zones
• Up to 25m Bluetooth range
• Personalised labelling (via PC)

Features

• 50 Watt RMS per channel Class D Amplifier with built-in Bluetooth Receiver and High Gain Bluetooth Antenna
• Play and control your music wirelessly in single or multiple zones
• Affordable solution
• 1:1 connectivity ensuring stable connection, minimising dropouts
• Works with iPod Touch (2nd generation), iPhone, iPad and other Bluetooth enabled audio transmitters
• Optional analogue line level input via UTP and Figure 8 connection to global source RL-BT430 Input Module
• Up to 25m range*
• Personalise label (via PC) to easily identify each zone for pairing with BT device
• TIM module (surface mounted) enables IR control of local amplifier functions and shows pairing and power status (TIM included). Can also provide IR control of source connected to the RL-BT430 via RLIR700/800 emitters

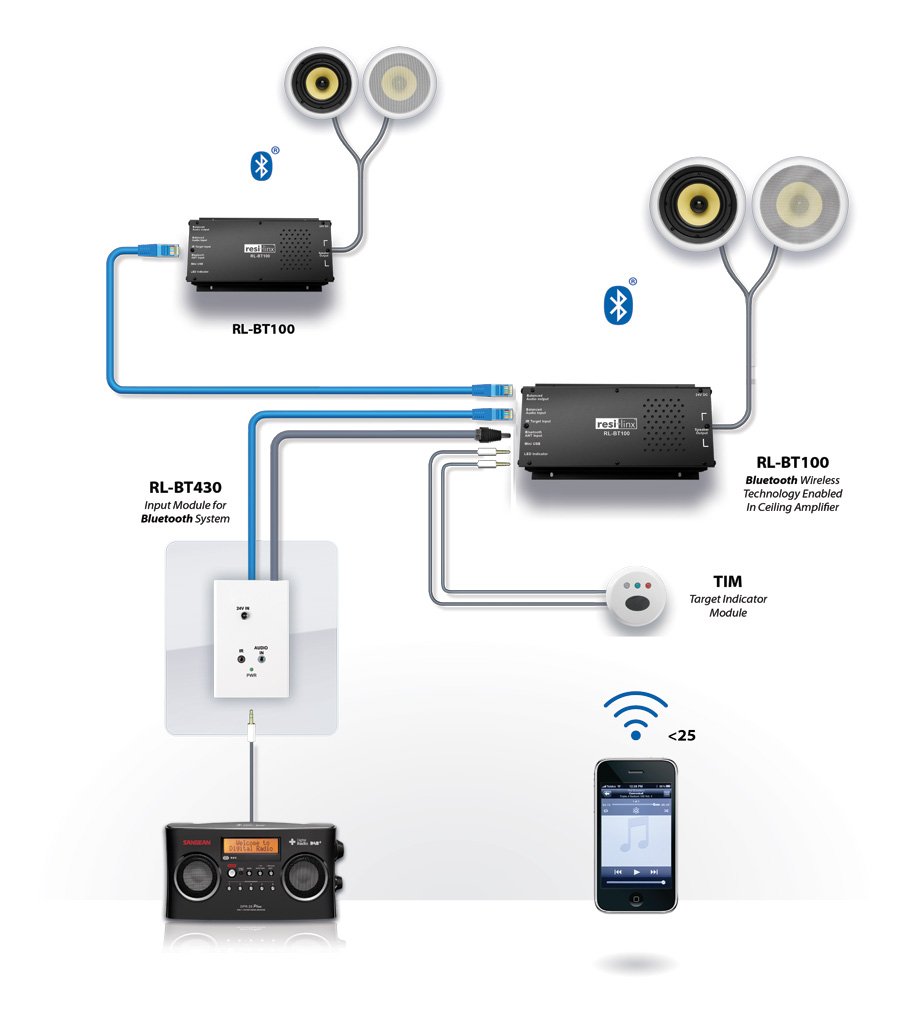

• Expand via UTP connection to another RL-BT100. System distributes either global input or audio received via Bluetooth
• Power locally (P/S) or remote via UTP & Figure 8 connection to RL-BT430 Input Module
• Supplied with 240V 3.75 Amp power supply, TIM module (2.7m cable) and remote control

Specifications

• Input Frequency: 2.4GHz
• Bluetooth compatibility: A2DP Bluetooth enabled devices
• Bluetooth System: Bluetooth 2.1 + EDR/Class 1
• Range: Up to 25m
• Line Level Audio Input Connector: RJ45 from RL-BT430
• Audio Output: 50W RMS per channel
• Power requirement: 24V 3.75 Amp DC input
• Amplifier Type: Class D
• Frequency response: 200 Hz - 15 KHz
• Expandable: Up to 3 zones
• Weight (g): 630
• Size (mm): 198(l) x 119(w) x 48(h)

The range comprises:

• RL-BT100 High powered in-ceiling amplifier with line level input and Bluetooth enabled receiver built in. Includes power supply. Can be looped to another RL-BT100. Programmable Bluetooth ID
• RL-BT430 Single Input Wall Plate for RL-BT100. Can also be used to remotely power an RL-BT100
• RL-BT110 ‘Retail’ mini Bluetooth enabled receiver for connection to any AV receiver / Multi Room Audio Hub
• RL-BT120 ‘Trade’ Bluetooth enabled professional grade receiver for connection to any AV receiver/Multi Room Audio Hub. Level, bass and treble controls &
  Hi-Gain Bluetooth antenna for greater range. Programmable Bluetooth ID
